Description

• Small size, simple structure, easy operation;
• DC24V/400MA dual output;
• The current of each channel is independently adjustable, and the dynamic response speed is fast;
• The output constant current has high precision and does not interfere with each other, ensuring constant brightness when the light source is working;
• The design scheme is mature, the conversion efficiency is high, and the main components adopt first-class brands to ensure product reliability.

Electrical parameters:
Number of channels: 2
Input voltage: AC110-240V, 50/60Hz
Output current: 0~400MA
Output voltage: DC24V
Maximum power: 25W

Dimming parameters:
Dimming method: stepless current control
Brightness level:

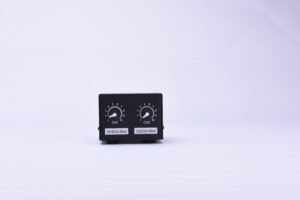

Manual adjustment: adjust through the brightness knob on the panel

Environmental parameters:
Working temperature: 0 - 40°C, humidity 20- 85%
Storage environment: 0 - 60°C, humidity 20- 85%

Mechanical parameters:
Shell material: 1MM cold-rolled plate derusting electroplating
Appearance color: black
Dimensions: 176*90*55MM
